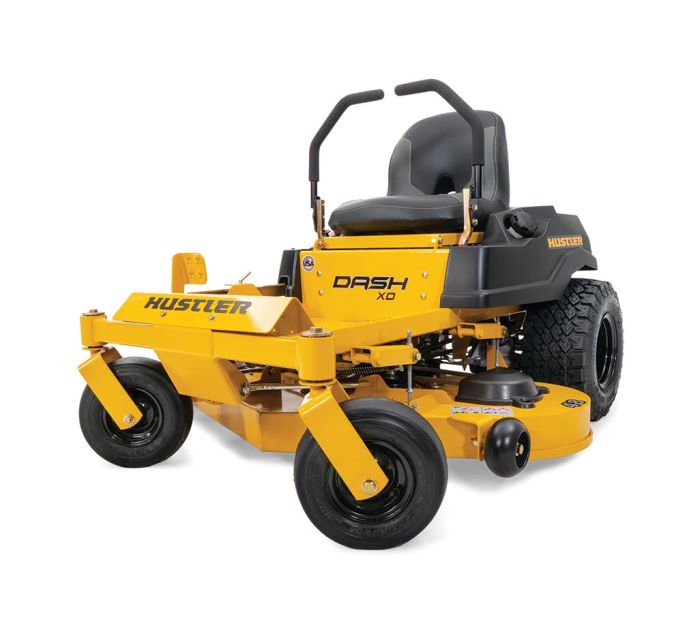

Hustler Dash XD 34″ Zero-Turn Mower

Request A Quote
SKU: HU940742EX Categories: , ,

DETAILS

The NEW Dash™ XD, perfectly designed for the small acreage owner with features that you will only find on expensive commercial grade machines. Hustler has taken it’s capabilities in the big lawn space and delivered it in a compact machine that means the small acreage owner no longer needs to compromise on quality and ability. The NEW Dash™ XD, what other choice is there?!

FEATURES

  • 1” x 2” Fully Tubular frame, making it one of the toughest in its class
  • Foot operated deck lift system, not hand operated like other brands
  • Premium bolstered seat with lumbar support built in
  • Easy Fill Fuel System
  • Compact size that will fit through most gates, giving easy access to the entire yard

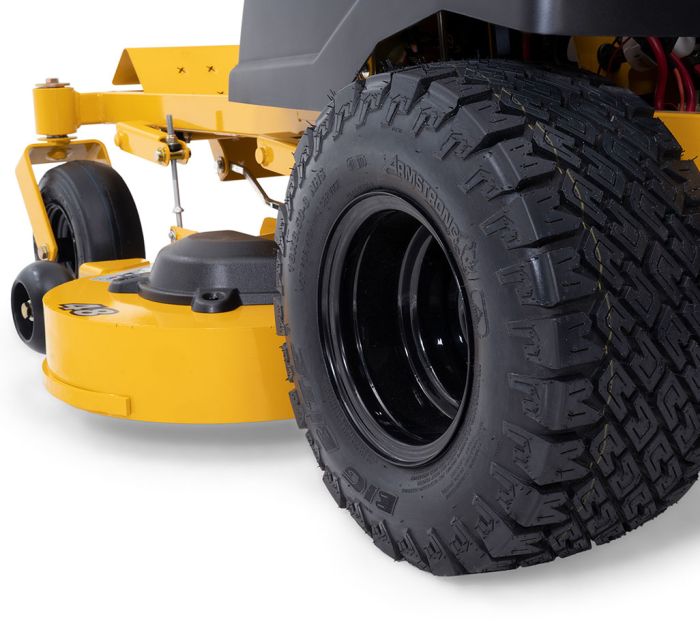

  • Hustler exclusive 18” BigBite™ drive tires and 11″ front castors
  • Premium Kawasaki V-Twin engine
  • Smooth Trak™ steering with automatic park brake system
  • 4.1” Deep Deck with larger discharge to increase grass cutting capacity and clearing performance
  • Engine Guard Standard

SPECIFICATIONS

All specifications are subject to change without notice.

  • Domestic Warranty 2 Year – 200 Hour

  • Engine (cc) 603 cc

  • Engine Kawasaki FR541V

  • Horsepower 15 hp @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)

  • Fuel Capacity 7.6L

  • Blade Length 42.5cm x 2 Blades

  • Dry Weight 207kg

  • Fuel Unleaded (see engine manufacturers specifications)

  • Drive System Dual hydrostatic. Hydro-Gear ZT1800 integrated hydrostatic zero-turn transaxles

  • Ground Speed – Forward Infinitely variable 0-9.7 km/h

  • Ground Speed – Reverse 0-4.8 km/h

  • Brakes Hydrostatic dynamic braking. Parking: Patented automatic park brake system.

  • Caster Tyres 11 x 4, smooth tread

  • Tyres – Drive Exclusive 18 x 6 – 8 BigBite™ tyre

  • Seat Premium bolstered seat with built-in lumbar support

  • Hour Meter Standard

  • ROPS **No ROPS**

  • Seat Suspension Seat suspension springs are standard

  • Height 102cm

  • Width 95cm (with discharge chute raised)

  • Width (tyre-to-tyre) 89cm

  • Deck System Side-Discharge: 34″ cut. 2 Blades, deck is suspended at two points at the rear and two in front.

  • Cutting Widths 34″ (86cm)

  • Deck Lift Foot Operated 4 point deck lift system

  • Deck Construction 11 ga, 3.0 mm welded steel with 14 ga, support plate double welded onto spindle mount areas. Solid 9.5 mm x 25.4 mm steel bars reinforce impact areas on trim edges. Steel deck housing is 104 mm deep to provide room for high-capacity mowing.

  • Cutting Height(s) 1.5″ (3.8cm) to 4.5″ (11.5cm) in 1/2″ (12mm) increments

  • Blade(s) 2 x Heavy-duty, heat treated blades 16.5″

  • Blade Tip Speed 17500fpm

  • Discharge Chute High density, rubberised

  • Transmission Hydro-Gear ZT1800

  • Kit – Mulch Not Standard – Available Option

  • Grass Catcher Not Standard – Accessory Available

  • Length 166 cm
