Navimow Terranox is a professional robot mower engineered for large-scale commercial turf — sports fields, golf courses, city green space and corporate campuses.
One CM240M1 covers up to 24,000 m², and the whole fleet is monitored, tasked and remapped remotely through the NavimowFleet app and web portal.
Share this product
Navimow Terranox is engineered for large-scale commercial lawn care. It delivers intelligent, efficient and eco-friendly mowing performance designed to reduce labour, lower operating costs and maintain consistent turf quality across demanding environments.
The range covers two models. The CM240M1 mows up to 24,000 m² with a 180 minute runtime at up to 1.0 m/s — a single unit can mow an area equivalent to a standard football field in one day. The CM120M1 mows up to 12,000 m² with a 145 minute runtime at up to 0.9 m/s.

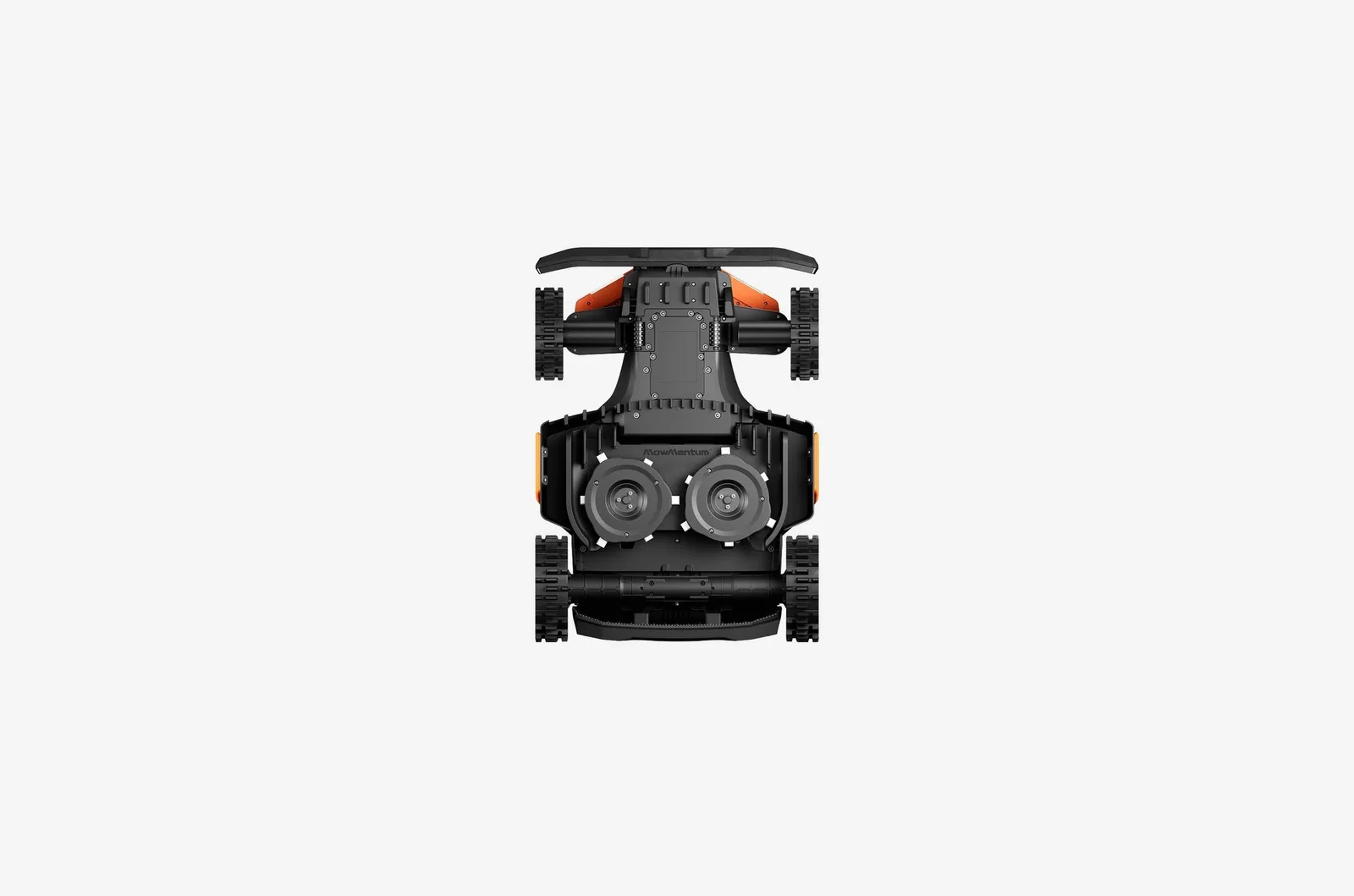

Both models cut 430 mm wide at 20–95 mm using a dual-motor, dual-deck system with 12 blades, which delivers clean, consistent results across all grass types and holds uniform turf quality year-round where traditional mowers struggle with fatigue, uneven cuts and changing conditions.
Setup is straightforward: no boundary wires and no antenna required*, with automatic mapping. EFLS NRTK navigation combines Network RTK, 360° vision and Visual Inertial Odometry for precise positioning, while VisionFence obstacle detection uses a 360° RGB camera and ToF sensing to work safely around people, equipment and turf furniture. The AWD system handles slopes up to 40° (84%).
NavimowFleet manages fleets of hundreds of mowers from a single platform. One operator can monitor performance, assign tasks and edit maps remotely from a smartphone, tablet or laptop, which lifts labour efficiency and operational control across multiple sites.
Terranox is a commercial machine supplied through appointed dealers. Contact Cairns Mower City to arrange a demonstration and pricing for your facility.
| Models in range | CM120M1 / CM240M1 |
|---|---|
| Maximum mowing area | CM120M1: 12,000 m² · CM240M1: 24,000 m² |
| Runtime | CM120M1: 145 minutes · CM240M1: 180 minutes |
| Mowing speed | CM120M1: 0.9 m/s · CM240M1: 1.0 m/s |
| Cutting width | 430 mm |
| Cutting height | 20–95 mm |
| Cutting system | Dual motors, dual deck, 12 blades |
| Drive system | AWD |
| Slope capability | 40° (84%) |
| Navigation / positioning | EFLS NRTK — Network RTK + 360° vision + Visual Inertial Odometry (VIO) |
| Obstacle avoidance | VisionFence — 360° RGB camera + ToF |
| Installation | No boundary wires, no antenna required*; automatic mapping. *The source page marks this claim with an asterisk but publishes no footnote — NEEDS VERIFICATION of the condition it qualifies |
| Fleet management | NavimowFleet via app and web portal |

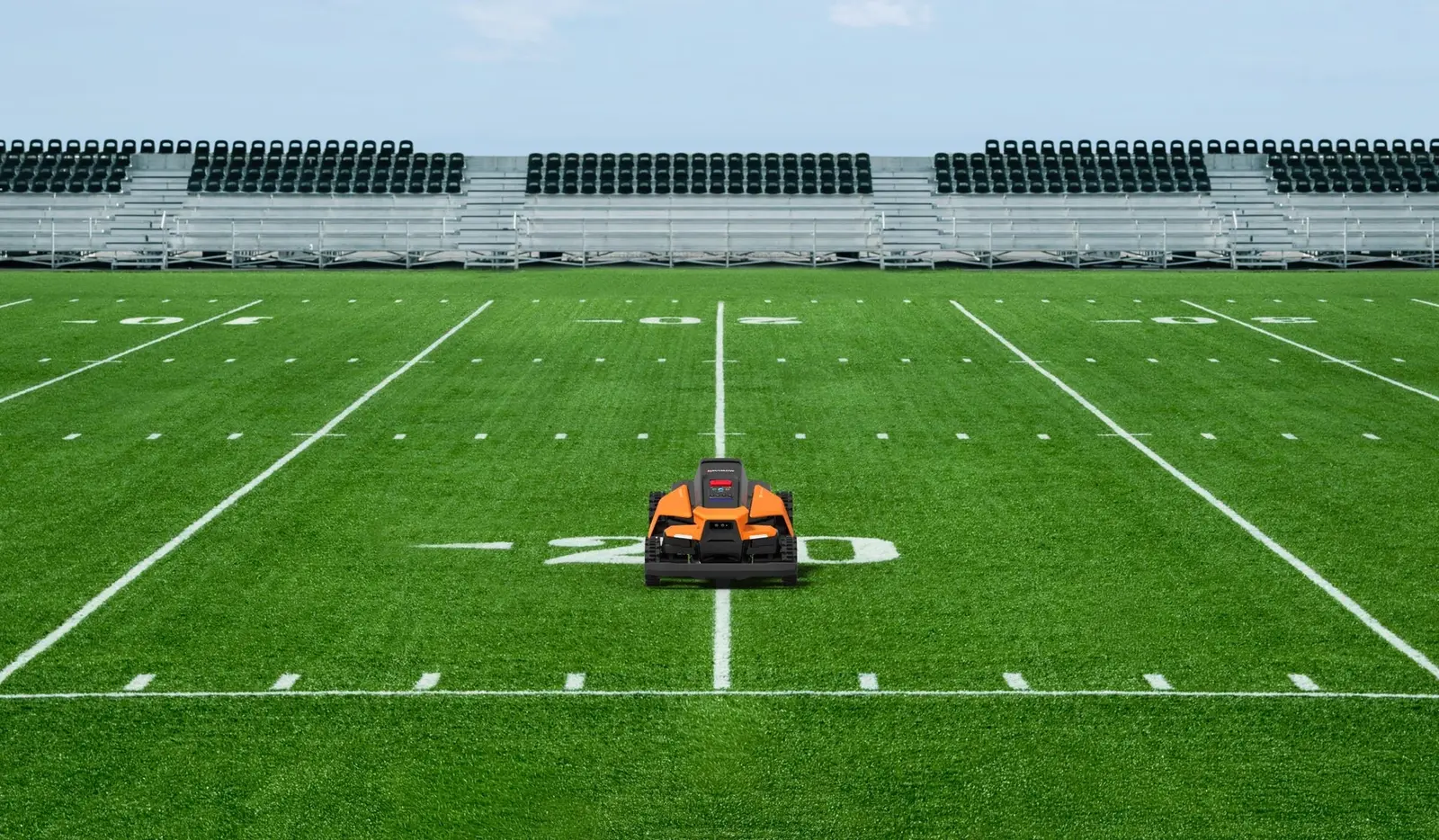

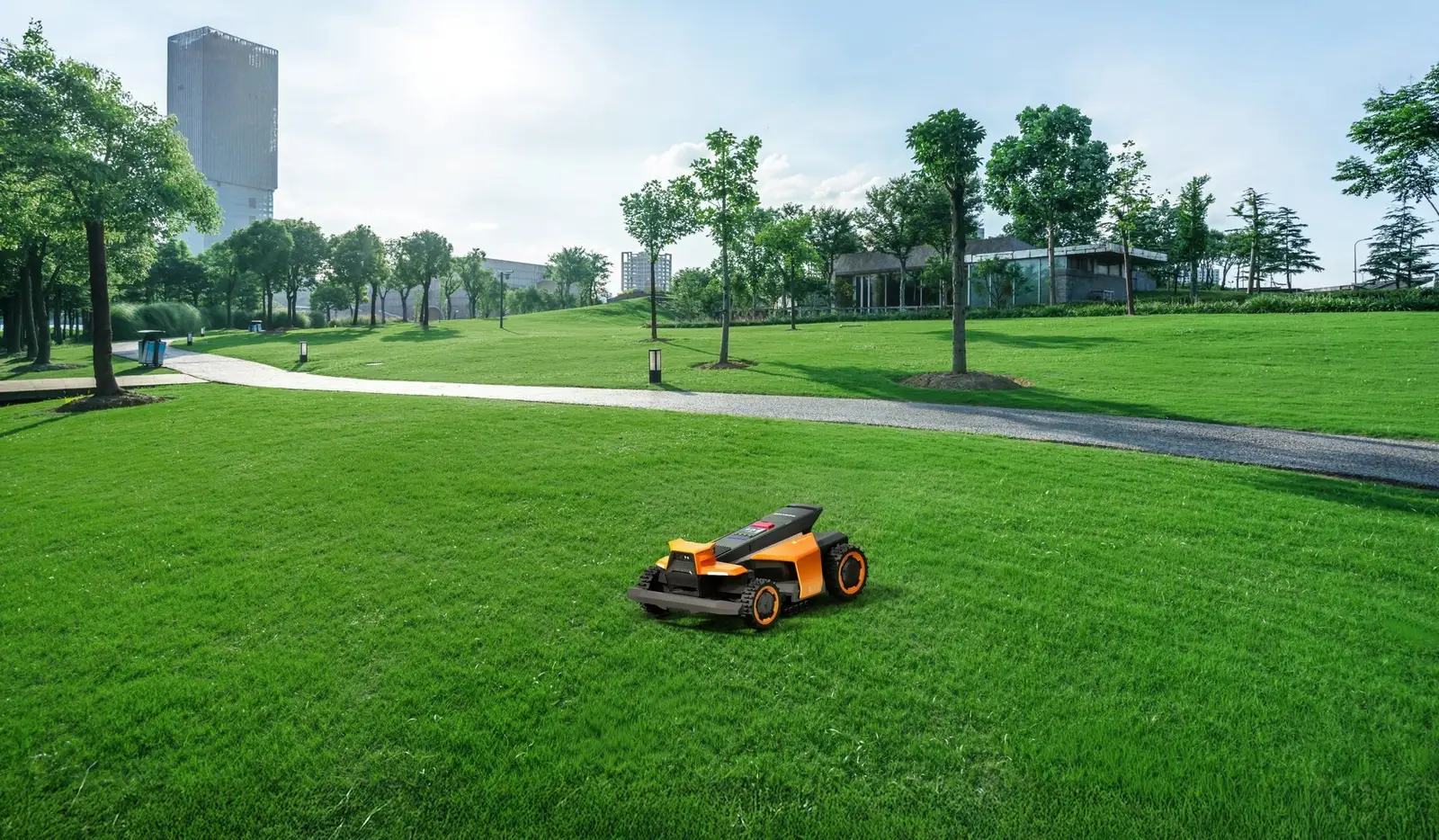

| Applications | Sports turf, golf courses, city green space, corporate campuses |
| Battery capacity | NEEDS VERIFICATION — not published on the source page |
| Charging time | NEEDS VERIFICATION — not published on the source page |
| Dimensions (L×W×H) | NEEDS VERIFICATION — not published on the source page |
| Weight | NEEDS VERIFICATION — not published on the source page |
| Ingress protection | NEEDS VERIFICATION — not published on the source page |
| Noise level | NEEDS VERIFICATION — not published on the source page |
| Warranty | NEEDS VERIFICATION — not published on the source page |
* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
