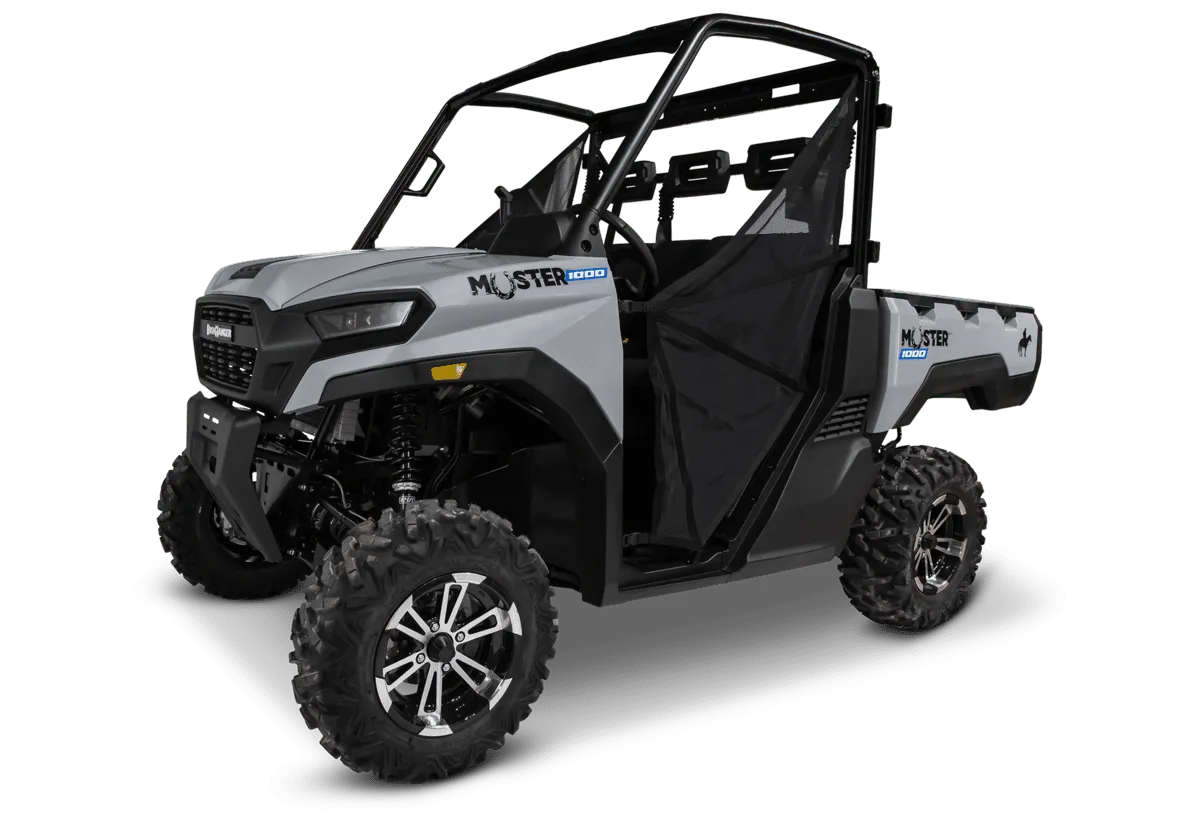

The Bushranger Muster is the work-spec 997 cc UTV — the same driveline, chassis and tray as the Drover, in a simpler package for operators who do not need the winch and cab glass. Power comes from a 4-stroke V-Twin SOHC 997 cc liquid-cooled engine with electronic fuel injection, making 83 HP and 89.9 Nm through a CVT transmission with electronic drive belt detection. Maximum speed is 101 km/h with the open key, or 40 km/h with the governed key. Fuel capacity is 42 litres. Selectable 2WD, RWD, 4WD, 4WD Lock and Turf drive modes with switchable front and rear differentials let you match traction to the surface, and Turf mode protects lawns and sports fields. Tri-Mode Dynamic Electric Power Steering with a tilt steering wheel makes it easy to place, and four-wheel hydraulic disc brakes with an automatic negative safety brake bring it to a stop. Dual A-Arm independent rear suspension front and rear gives 27.9 cm of travel, with an anti-roll bar at the rear and preload-adjustable shocks. Ground clearance is 360 mm front and rear, on 14″ aluminium alloy rims with 27 × 9-14 front and 27 × 11-14 rear 6-ply radial tyres. At 735 kg dry, the Muster is 158 kg lighter than the fully equipped Drover. Inside there is seating for three with an adjustable driver’s seat, a foldable passenger seat for extra storage flexibility, generous legroom and six cup holders. The tipping cargo tray carries 454 kg, measures 1080 × 1600 × 320 mm inside and tips to 47°, and towing capacity is 1,134 kg. LED head and tail lights and net doors are standard. The Muster is backed by a 2 year domestic and commercial warranty from date of purchase, to the original purchaser only. This model is available on backorder — contact Cairns Mower City for current lead times. Online orders are collection from our Cairns store, with delivery able to be arranged and quoted separately.

Specifications

Model code	BRUMUSTER
Power plant	4-Stroke V-Twin Cylinder SOHC
Engine capacity	997 cc
Cooling	Liquid cooling
Power	83 HP
Maximum torque	89.9 Nm
Injection system	Electronic Fuel Injection
Fuel	Unleaded
Fuel capacity	42 L
Transmission	CVT with Electronic Drive Belt Detection
Drive modes	Selectable 2WD / RWD / 4WD / 4WD Lock / Turf Mode
Maximum speed	101 km/h (7220 rpm) with open key; 40 km/h with governed key
Steering	Tri-Mode Dynamic Electric Power Steering with tilt steering wheel
Braking system	4-wheel hydraulic disc brake
Safety features	Automatic negative safety brake
Suspension — front	Dual A-Arm IRS with 27.9 cm travel
Suspension — rear	Dual A-Arm IRS with 27.9 cm travel with anti-roll bar
Shock absorbers	Preload adjustable / preload ring
Ground clearance	Front 360 mm / rear 360 mm
Wheels	14″ aluminium alloy rims
Front tyres	27 × 9-14 6P radial
Rear tyres	27 × 11-14 6P radial
Overall length	3100 mm
Width	1625 mm
Height	2000 mm
Dry weight	735 kg
Seating	Adjustable driver’s seat with 2 × fixed passenger seats (3 people). NEEDS VERIFICATION — the source spec table says “2 x fixed Passenger Seats” while the source description says “a foldable passenger seat”; the two statements conflict
Cup holders	6

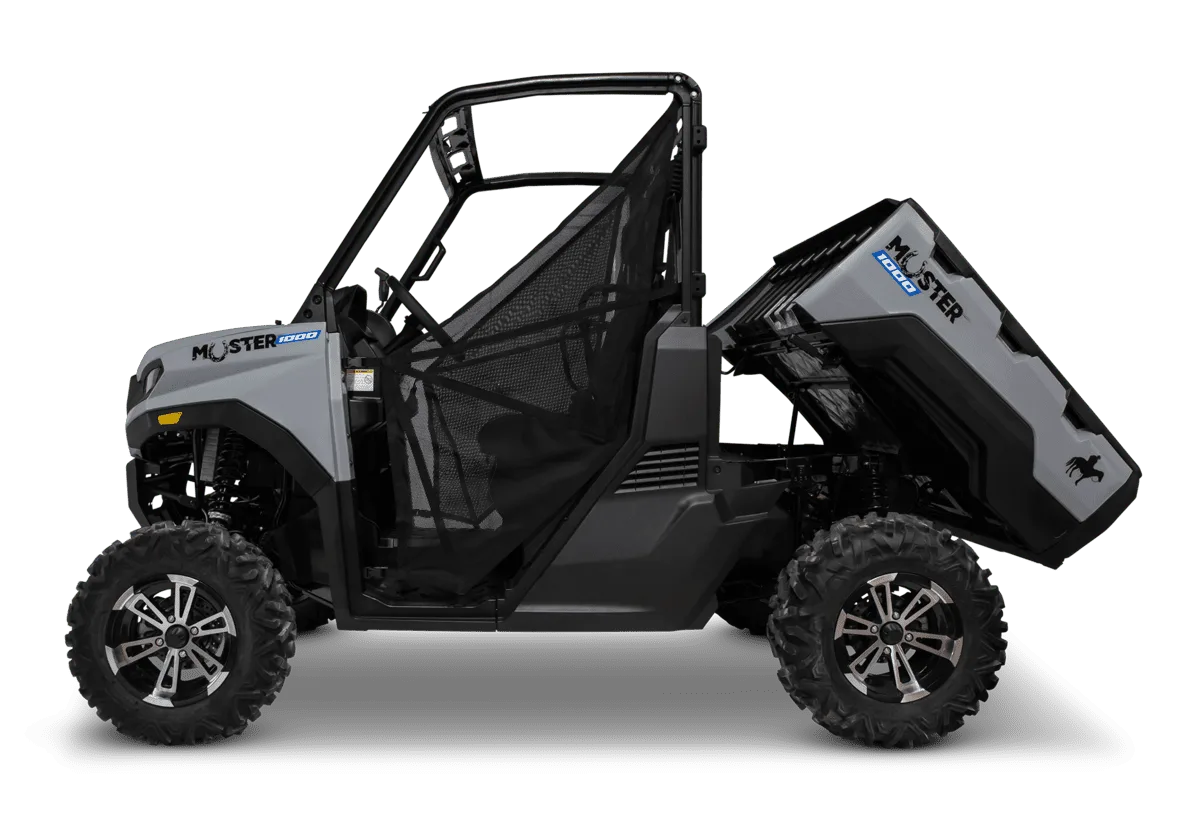

Cargo box dimensions	1080 mm (L) × 1600 mm (W) × 320 mm (H) inside
Cargo box tilt angle	47°
Cargo box / tray payload	454 kg
Towing capacity	1,134 kg
Winch	Not fitted (NA)
Windshield	Not fitted (NA)
Windshield wipers and washer	Not fitted (NA)
Roof	Listed as NA in the source spec table, although the source product photography appears to show a roof panel fitted — NEEDS VERIFICATION
Lights	LED head and tail lights. Headlight output: low beam 26 W, high beam 64 W (tail light wattage not published)
Doors	Net doors
Electrical system	12 V with integrated 650 W alternator
Domestic warranty	2 years from date of purchase, original purchaser only
Commercial warranty	2 years from date of purchase, original purchaser only

* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.
